RD8200 Cable And Pipe Locators

The Radiodetection RD8200 is the industry standard for precision damage prevention. Designed for heavily congested underground networks, this advanced locator combines speed, accuracy, and reliability to prevent utility strikes.

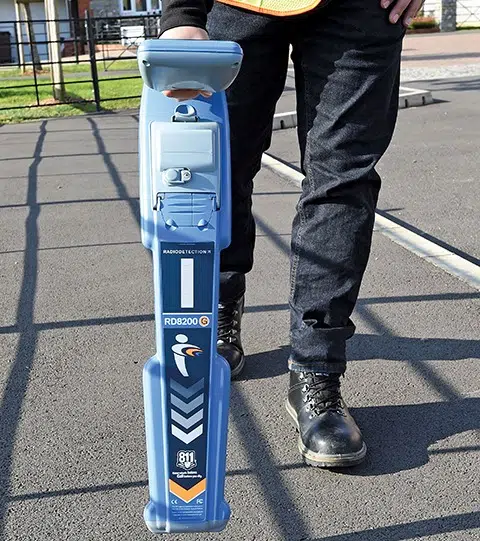

The RD8200 ensures precise depth readings only when the locator is correctly oriented. It excels in noisy environments with Dynamic Overload Protection, filtering out interference from high-voltage cables. When paired with the Tx-10 transmitter, the Current Direction (CD) feature allows you to isolate and trace a single target line among multiple parallel utilities with confidence.

The equipment is available for daily, weekly, or project-based rental, providing the most reliable tool for technicians who need to mark buried infrastructure quickly and accurately.

Technical Overview

  • System Type : Precision Multi-function cable and pipe locator.
  • Locate Modes: Peak, peak, Null, Guidance, and Broad Peak.
  • Active Frequencies: Wide range customizable frequencies (up to 200kHz).
  • Protection: IP65 (Shock, Dust, and Water Resistant) for hars conditions.

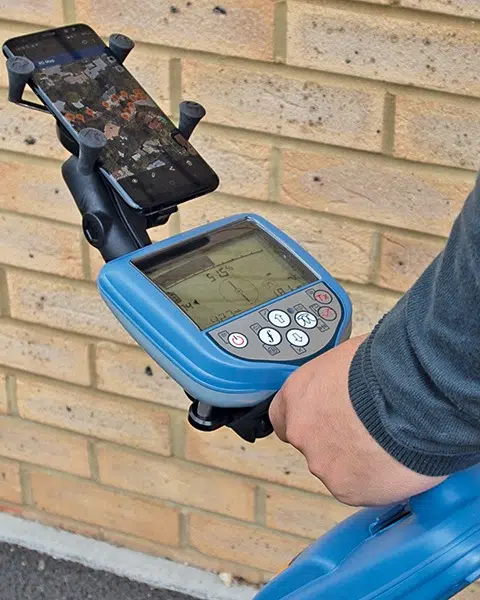

  • Communication: Wi-Fi and Bluetooth 5.0 (Up to 130m).


Instrument Rental Package

  • Main Unit Radiodetection RD8200 receiver.
  • TransmitterL TX-10.
  • Signal Clamp: 100mm (4″) induction clamp for live cable tracing.
  • Power: Rechargeable Li-io battery pack and main charger.
  • Rugged soft case for transport.



Main Applications

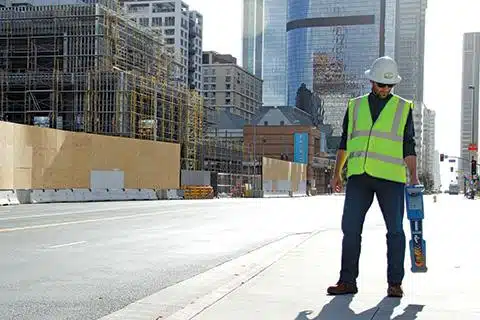

  • Utility Avoidance : Pre-excavation surveys to prevent cable strikes.
  • Congested Network Mapping: Isolating specific telecom or power lines in crowded trenches.
  • Fault Finding: Pinpointing cable insulation damage (requires A-Frame).
  • Pipeline Tracing: Long-distance tracing of coated pipelines with CPS modes.
