Newest ABEM!!! GroundTEM-i10

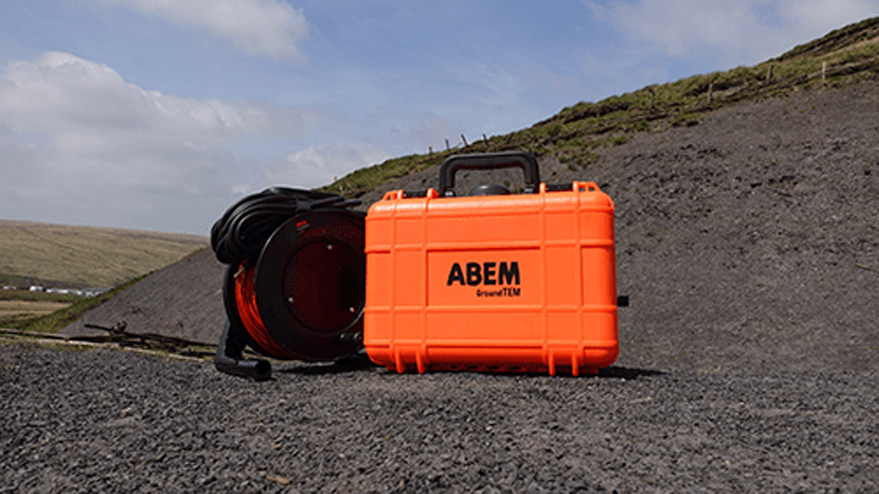

The ABEM GroundTEM i10 is a game-changing solution for groundwater and environmental surveys. Designed to be more accessible and faster to deploy than traditional TEM systems, the i10 combines high performance with a lightweight, user-friendly design controlled entirely via an intuitive Android App.

Despite its compact size, the i10 packs a powerful 10A Dual-Moment transmitter, allowing for simultaneous shallow and deep data acquisition in a single measurement cycle. This enables precise resistivity soundings down to depths in excess of 200 meters. With built-in Wi-Fi and onboard processing, you can visualize 1D inversions directly in the field, making real-time decisions easier than ever.

The equipment is available for daily, weekly, or project-based rental, offering a cost-effective way to deploy advanced electromagnetic technology for your hydrogeological investigations.


Information

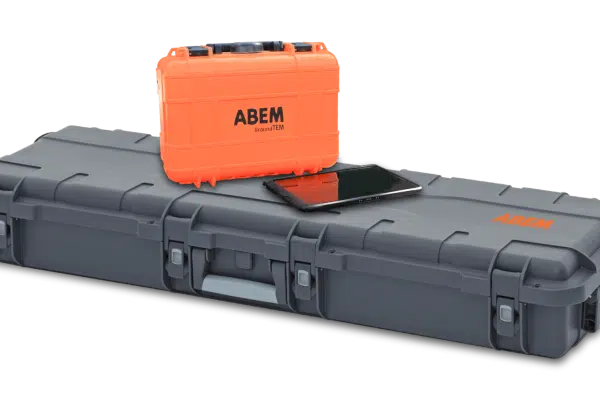

echnical Overview System Type: Dual-moment transient electromagnetic (TEM). Transmitter current: Up to 10A (High moment) 1A( Low moment). Depth capabilities: 200m (depend on loop size and noise). Control Interface: Wireless operation via Android App (Tablet/phone). Power Supply: Lightweight internal Li-ion batteries (Hot-swappable). Instrument Rental Package Main unit ABEM GroundTEM i10 (TX/RX integrated). Receiver coil: 3×3 flexible RC-5 receiver coil option. Transmitter Loop: 40x40m tranmitter loop (4.0mm², 1 turn). Controller:  Android tablet with GroundTEM App. Accesories: Connection cables, battery charger, and transport case. Optional Add-ons RTK GPS. Operator.  Main Applications Groundwater Mapping: Locating aquifers and monitoring water tables. Saltwater Intrusion: Delineating fresh/saline water boundaries in coastal areas. Environmental Studies: Mapping clay layers and potential pollutant plumes. Geological Mapping: Bedrock depth estimation. Mineral Exploration:Reconnaissance surveys for conductive ore bodies.
